SuperPolar

FomexLine SuperPolar pre-insulated copper pipes with foam rubber insulation for use in conjunction with Refrigeration & Air Conditioning systems.

(R407-R410)



The FomexLine SuperPolar - The ideal solution for Refrigeration & Air Conditioning systems.

The FomexLine SuperPolar is a product which, due to its high wall thickness insulation, is specially designed for Refrigeration and Air Conditioning systems - in particular for places where the units operate under hard, high moisture level conditions -, and also for chillers or for any other application where the requirement is for high wall thickness insulation.


The FomexLine SuperPolar is renowned for its excellent quality, due to the use of high quality ACR copper pipes in our products, manufactured according to the strictest standards and to the requirements of the international Air Conditioning standards, in combination with the use of foam rubber insulation, well known as one of the best thermal insulation materials.

The FomexLine SuperPolar is made from ACR inch diameter copper pipes (in accordance with ASTM - B280 and/or EN-12735) and a 19mm wall thickness insulation with a white, aesthetic external protection film that protects the pipe and the insulation from mechanical and UV radiation damages.

The FomexLine SuperPolar is suitable for air conditioning systems working with heating pumps, due to the use of foam rubber insulator as insulation material.

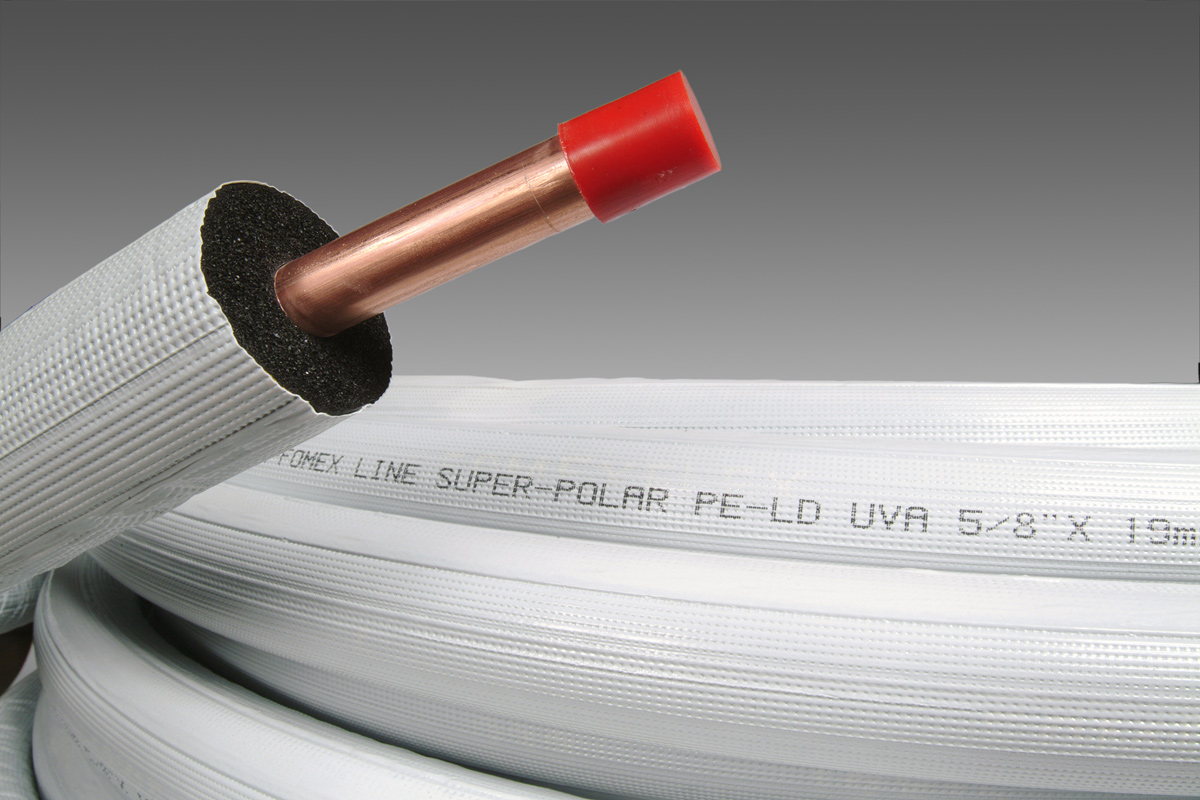

Every meter of FomexLine SuperPolar is marked with the pertinent dimensions and other relevant details about the product for the plumber’s convenience, as shown in the following example:
1m FOMEXLINE SUPER POLAR PE-LD U.V 5/8"x19mm R407-R410 01/12/99 22:08

The FomexLine SuperPolar saves expensive time and manpower effort during installation.


The FomexLine SuperPolar is supplied in 25, 45- or 50-meter coils, according to the customer’s requirements.



FomexLine SuperPolar - TECHNICAL DATA

Copper pipes

CU - DHP 99.9% ,inch diameter ,ASTM-B280 and/or EN 12735

Insulation Type

Elastomeric Foam, based on Synthetic Rubber

Insulation structure

Closed cells

Insulation wall thickness

19mm

Temp. Range

-60°c - +105°c

Water Vapor diffusion

5000

Thermal conductivity

0.036w/m*k at 20°c

Fire Rating

Class 1 self - extinguishing

External Coating

white color with UV protection



We are able to answer different Fire Rates, such as class 0, B1,B2, or M1, by special requirement.



Copper Pipes External Diameter

inch

5/16

3/8

1/2

5/8

mm

7.96

9.52

12.70

15.88

Insulation Wall Thickness

mm

19

19

19

19

External diameter  of copper pipe + insulation

mm

46

48

51

54

Weight of Copper Pipes

Kg/m

0.152 - 0.162

0.185 - 0.201

0.255 - 0.271

0.366 - 0.385

Water Content

Vl/m

0.029

0.046

0.093

0.155
