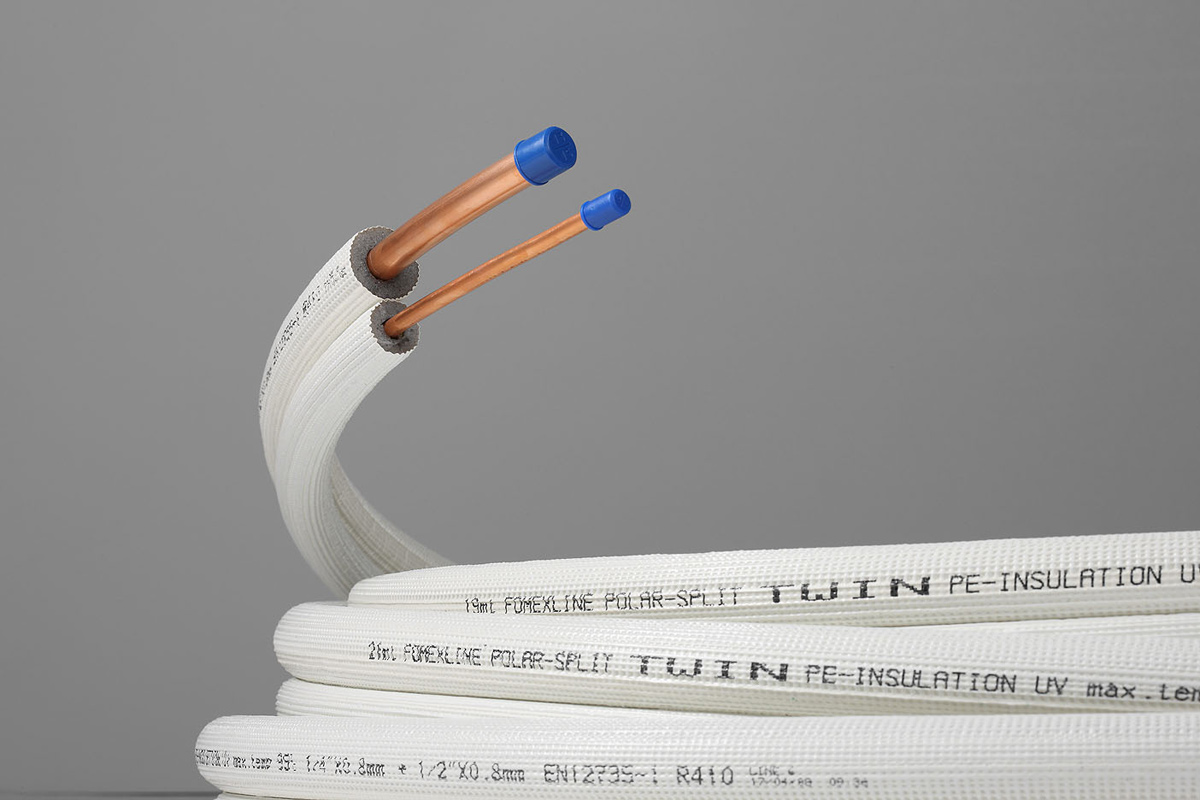

Polar Spilt TWIN

Pre-insulated copper pipes with Foam Polyethylene insulation for Air Conditioning Splits ( R407 R410)

The FomexLine Polar-Split TWIN has been specially designed for air conditioning split systems, placing special emphasis on high quality and convenience during installation.

The FomexLine Polar-Split TWIN is known for its excellent quality, due to the combined use of high quality ACR copper pipes - which meet the strictest manufacturing standards and the requirements of international standards, and of Foam Polyethylene insulation material, well known as one of the best thermal insulation materials.


The FomexLine Polar-Split TWIN is supplied with ACR  inch and/or mm diameter copper pipes (ASTM B280 and/or EN 12735) and 6mm - 9mm-thick insulation wall coated with an aesthetic white external film that provides protection to the pipe and the insulation from UV radiation and mechanical damages.

Every meter of FomexLine Polar-Split TWIN is marked with the relevant dimensions and other pertinent details about the product for the convenience of the plumber, as shown in the following example:
1m FOMEXLINE POLAR SPLIT PE-LD INSULATION UV 1/4"x0.8mm + 3/8x0.8mm.EN12735-1 R407-R410


FomexLine Polar-Split TWIN - saves expensive time and manpower effort during installation.

FomexLine Polar-Split TWIN is supplied in 20, 25 or 30-meter coils, according to customer requirements.

FomexLine Polar-Spilt TWIN - TECHNICAL DATA

Copper pipes

CU - DHP 99.9% inch / mm diameter ,ASTM-B280 and/or EN 12735

Insulation Type

Foam Polyethylene

Insulation structure

closed cells

Insulation wall thickness

6mm - 9mm

Temp. Range

-60c - +95c

Water Vapor diffusion

5000

Thermal conductivity

0.036w/m*k at 20c

Fire Rating-

Class 1 / DIN4102-B2 self - extinguishing

External Coating

white with UV protection



Copper Pipes Diameter

inch

1/4"+3/8"

1/4"+1/2"

3/8"+1/2"

1/4"+5/8"

3/8"+5/8"

3/8"+3/4"

1/2"+3/4"

mm

6 + 10

6 + 12

10 + 12

6 + 15

10 + 15

10 + 18

12 + 18

Insulation Wall Thickness

mm

6-9

6-9

6-9

6-9

6-9

6-9

6-9

9

6 /9

6-9

6-9
